2. Example running HBV for particle filter defining DA parameters on the go (WIP)

setup packages

# general python
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
import numpy as np
import os
from pathlib import Path
import yaml
import pandas as pd
import matplotlib.pyplot as plt
from datetime import datetime
import scipy
import xarray as xr
from tqdm import tqdm
import glob
from devtools import pprint

# general eWC
import ewatercycle
import ewatercycle.forcing
import ewatercycle.models

# pip install ewatercycle-HBV

set up paths

path = Path.cwd()
forcing_path = path / "Forcing"
observations_path = path / "Observations"
figure_path = path / "Figures"
output_path = path / "Output"
forcing_path

PosixPath('/home/davidhaasnoot/eWaterCycle-DA/docs/Forcing')

Add parameter info

## Array of initial storage terms - we keep these constant for now
##              Si,  Su, Sf, Ss
s_0 = np.array([0,  100,  0,  5])

## Array of parameters min/max bounds as a reference
##                      Imax,  Ce,  Sumax, beta,  Pmax,  T_lag,   Kf,   Ks
p_min_initial= np.array([0,   0.2,  40,    .5,   .001,   1,     .01,  .0001])
p_max_initial = np.array([8,    1,  800,   4,    .3,     10,    .1,   .01])
p_names = ["$I_{max}$",  "$C_e$",  "$Su_{max}$", "β",  "$P_{max}$",  "$T_{lag}$",   "$K_f$",   "$K_s$"]
S_names = ["Interception storage", "Unsaturated Rootzone Storage", "Fastflow storage", "Groundwater storage"]
param_names = ["Imax","Ce",  "Sumax", "Beta",  "Pmax",  "Tlag",   "Kf",   "Ks"]
stor_names = ["Si", "Su", "Sf", "Ss"]

# set initial as mean of max,min
par_0 = (p_min_initial + p_max_initial)/2

experiment_start_date = "1997-10-01T00:00:00Z"
experiment_end_date = "1998-11-01T00:00:00Z"
HRU_id = 1620500
alpha = 1.26

Forcing

from ewatercycle.forcing import sources

camels_forcing = sources.HBVForcing(start_time = experiment_start_date,
                          end_time = experiment_end_date,
                          directory = forcing_path,
                          camels_file = f'0{HRU_id}_lump_cida_forcing_leap.txt',
                          alpha = alpha
                          )

import model

from ewatercycle.models import HBV

import DA function (locally for now)

import importlib.util

def module_from_file(module_name, file_path):
    spec = importlib.util.spec_from_file_location(module_name, file_path)
    module = importlib.util.module_from_spec(spec)
    spec.loader.exec_module(module)
    return module

DA = module_from_file("DA",r'../src/eWaterCycle_DA/DA.py')

n_particles = 30

setup model

ensemble = DA.Ensemble(N=n_particles)
ensemble.setup()

array_random_num = np.array([[np.random.random() for i in range(len(p_max_initial))] for i in range(n_particles)])
p_intial = p_min_initial + array_random_num * (p_max_initial-p_min_initial)

# values wihch you
setup_kwargs_lst = []
for index in range(n_particles):
    setup_kwargs_lst.append({'parameters':','.join([str(p) for p in p_intial[index]]),
                            'initial_storage':','.join([str(s) for s in s_0]),
                             })

ensemble.initialize(model_name=["HBV"]*n_particles,
                    forcing=[camels_forcing]*n_particles,
                    setup_kwargs=setup_kwargs_lst)

# create a reference model for easy access
ref_model = ensemble.ensemble_list[0].model

ds = xr.open_dataset(forcing_path / ref_model.forcing.pr)

Import observations

observations = observations_path / f'0{HRU_id}_streamflow_qc.txt'

cubic_ft_to_cubic_m = 0.0283168466

new_header = ['GAGEID','Year','Month', 'Day', 'Streamflow(cubic feet per second)','QC_flag']
new_header_dict = dict(list(zip(range(len(new_header)),new_header)))

df_Q = pd.read_fwf(observations,delimiter=' ',encoding='utf-8',header=None)
df_Q = df_Q.rename(columns=new_header_dict)
df_Q['Streamflow(cubic feet per second)'] = df_Q['Streamflow(cubic feet per second)'].apply(lambda x: np.nan if x==-999.00 else x)
df_Q['Q (m3/s)'] = df_Q['Streamflow(cubic feet per second)'] * cubic_ft_to_cubic_m
df_Q['Q'] = df_Q['Q (m3/s)'] / ds.attrs['area basin(m^2)'] * 3600 * 24 * 1000 # m3/s -> m/s ->m/d -> mm/d
df_Q.index = df_Q.apply(lambda x: pd.Timestamp(f'{int(x.Year)}-{int(x.Month)}-{int(x.Day)}'),axis=1)
df_Q.index.name = "time"
df_Q.drop(columns=['Year','Month', 'Day','Streamflow(cubic feet per second)'],inplace=True)
df_Q = df_Q.dropna(axis=0)

ds_obs_dir = observations_path / f'0{HRU_id}_streamflow_qc.nc'
ds_obs = xr.Dataset(data_vars=df_Q[['Q']])
if not ds_obs_dir.exists():
    ds_obs.to_netcdf(ds_obs_dir)

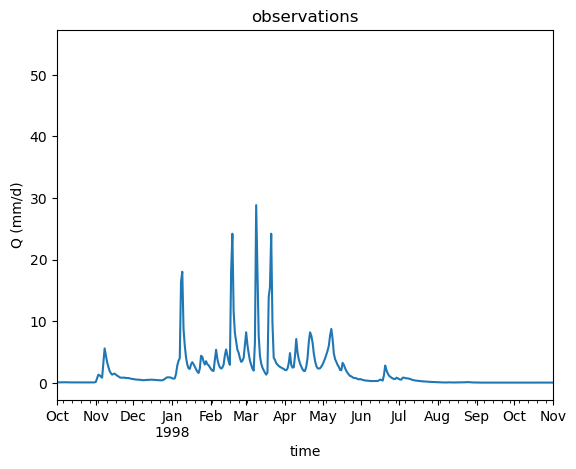

ax = df_Q['Q'].plot()
ax.set_xlim((pd.Timestamp(experiment_start_date),pd.Timestamp(experiment_end_date)))
ax.set_ylabel("Q (mm/d)")
ax.set_title("observations");

setup DA

This sets up all the require data assimilation information

def H(Z):
    if len(Z) == 13:
        return Z[-1]
    else:
        raise SyntaxWarning(f"Length of statevector should be 9 but is {len(Z)}")

Run algorithm

First half without assimilating

n_timesteps = int((ref_model.end_time - ref_model.start_time) /  ref_model.time_step)
half_n_timesteps = int(n_timesteps/2)

lst_Q = []
time = []
for _ in tqdm(range(half_n_timesteps)):
    time.append(pd.Timestamp(ref_model.time_as_datetime.date()))
    ensemble.update(assimilate=False)
    lst_Q.append(ensemble.get_value("Q").flatten())
    # TODO: adjust so that tLag ? currently still often 3

100%|█████████████████████████████████████████████████████████████████████████████████| 198/198 [00:25<00:00,  7.83it/s]

Then define what you want to assimilate & run the alogithm with that

ensemble_method_name = "PF"
hyper_parameters = {
               'like_sigma_weights' : 0.05,
               'like_sigma_state_vector' : 0.01,
                 }

state_vector_variables = "all"
measurement_operator = H

lst_state_vector = []
for _ in tqdm(range(half_n_timesteps)):
    time.append(pd.Timestamp(ref_model.time_as_datetime.date()))
    ensemble.update(assimilate=False)
    ensemble.assimilate(ensemble_method_name = ensemble_method_name,
                    obs = ds_obs["Q"].sel(time=time[-1]).values,
                    measurement_operator = measurement_operator,
                    hyper_parameters = hyper_parameters,
                    state_vector_variables = state_vector_variables)

    lst_state_vector.append(ensemble.get_state_vector())
    lst_Q.append(ensemble.get_value("Q").flatten())
    # TODO: adjust so that tLag ? currently still often 3

# end model - IMPORTANT! when working with dockers
ensemble.finalize()

100%|█████████████████████████████████████████████████████████████████████████████████| 198/198 [06:49<00:00,  2.07s/it]

WIP:

Q_m_arr = np.array(lst_Q).T
state_vector_arr = np.array(lst_state_vector)
state_vector_arr_copy = state_vector_arr.copy()

empty_state_vector = []
for _ in range(half_n_timesteps):
    arr = np.zeros((state_vector_arr.shape[1],state_vector_arr.shape[2]))
    arr[:,:] = np.nan
    empty_state_vector.append(arr)
empty_state_vector_arr = np.hstack(empty_state_vector).reshape(half_n_timesteps,state_vector_arr.shape[1],state_vector_arr.shape[2])
state_vector_arr = np.vstack([empty_state_vector_arr, state_vector_arr_copy])

process the numpy data into easily acessed data types

save = False
current_time = str(datetime.now())[:-10].replace(":","_")

df_ensemble = pd.DataFrame(data=Q_m_arr[:,:len(time)].T,index=time,columns=[f'particle {n}' for n in range(n_particles)])

process states and parameters into xarrys

##### Save?
if save:
    df_ensemble.to_feather(output_path /f'df_ensemble_{current_time}.feather')

# if load:
# TODO: obtain from model
units= {"Imax":"mm",
        "Ce": "-",
        "Sumax": "mm",
        "Beta": "-",
        "Pmax": "mm",
        "Tlag": "d",
        "Kf": "-",
        "Ks": "-",
        "Si": "mm",
        "Su": "mm",
        "Sf": "mm",
        "Ss": "mm",
        "Ei_dt": "mm/d",
        "Ea_dt": "mm/d",
        "Qs_dt": "mm/d",
        "Qf_dt": "mm/d",
        "Q_tot_dt": "mm/d",
        "Q": "mm/d"}

data_vars = {}
for i, name in enumerate(param_names + stor_names):
    storage_terms_i = xr.DataArray(state_vector_arr[:,:,i].T,
                                   name=name,
                                   dims=["EnsembleMember","time"],
                                  coords=[np.arange(n_particles),df_ensemble.index],
                                  attrs={"title": f"HBV storage terms data over time for {n_particles} particles ",
                                           "history": f"Storage term results from ewatercycle_HBV.model",
                                        "description":"Moddeled values",
                                             "units": "mm"})
    data_vars[name] = storage_terms_i

ds_combined = xr.Dataset(data_vars,
                         attrs={"title": f"HBV storage terms data over time for {n_particles} particles ",
                                "history": f"Storage term results from ewatercycle_HBV.model",}
                          )
if save:
    ds_combined.to_netcdf(output_path / f'combined_ds_{current_time}.nc')

Plotting

# df_ensemble.plot()
fig, ax = plt.subplots(1,1,figsize=(12,5))
# ax.plot(ds.time.values[:n_days],ds['Q'].values[:n_days],lw=0,marker="*",ms=2.5,zorder=0,label="Observations",color="k")
# ax.plot(df.index, Q_m_in_ref[1:],label="Modelled reference Q");
ds_obs['Q'].sel(time=time).plot(ax=ax,lw=0,marker="*",ms=2.5,zorder=0,label="Observations",color='k')
ax.legend(bbox_to_anchor=(1,1))

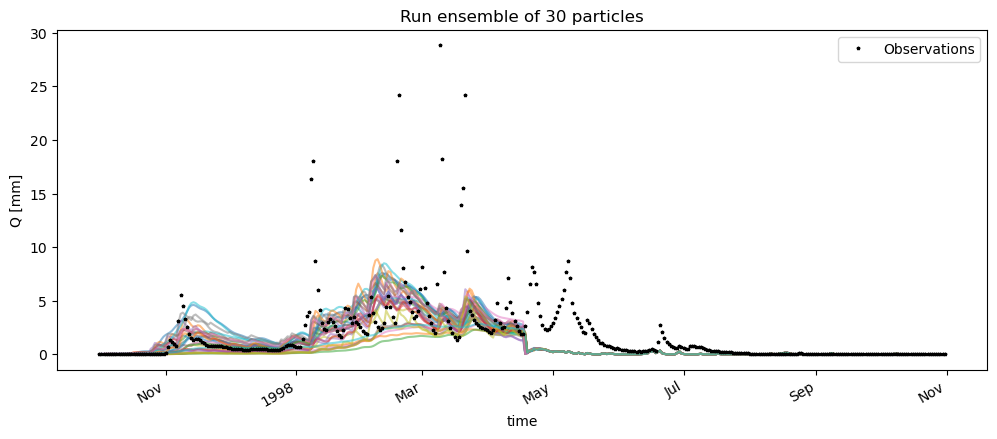

df_ensemble.plot(ax=ax,alpha=0.5,zorder=-1,legend=False)
ax.set_ylabel("Q [mm]")
ax.set_title(f"Run ensemble of {n_particles} particles");
if save:
    fig.savefig(figure_path / f"ensemble_run_for_{n_particles}_particles_{current_time}.png")

WIP: deal with ensemble collapase later

Can calculate the mea as a reference

def calc_NSE(Qo, Qm):
    QoAv  = np.mean(Qo)
    ErrUp = np.sum((Qm - Qo)**2)
    ErrDo = np.sum((Qo - QoAv)**2)
    return 1 - (ErrUp / ErrDo)

mean_ensemble = df_ensemble.T.mean()
NSE_mean_ens = calc_NSE(ds_obs['Q'].sel(time=time).values,mean_ensemble.loc[time])

# df_ensemble.plot()
fig, ax = plt.subplots(1,1,figsize=(12,5))
# ax.plot(ds.time.values[:n_days],ds['Q'].values[:n_days],lw=0,marker="*",ms=2.5,zorder=0,label="Observations",color="k")
# ax.plot(df.index, Q_m_in_ref[1:],label="Modelled reference Q");
ds_obs['Q'].sel(time=time).plot(ax=ax,lw=0,marker="*",ms=2.0,zorder=0,label="Observations",color='k')

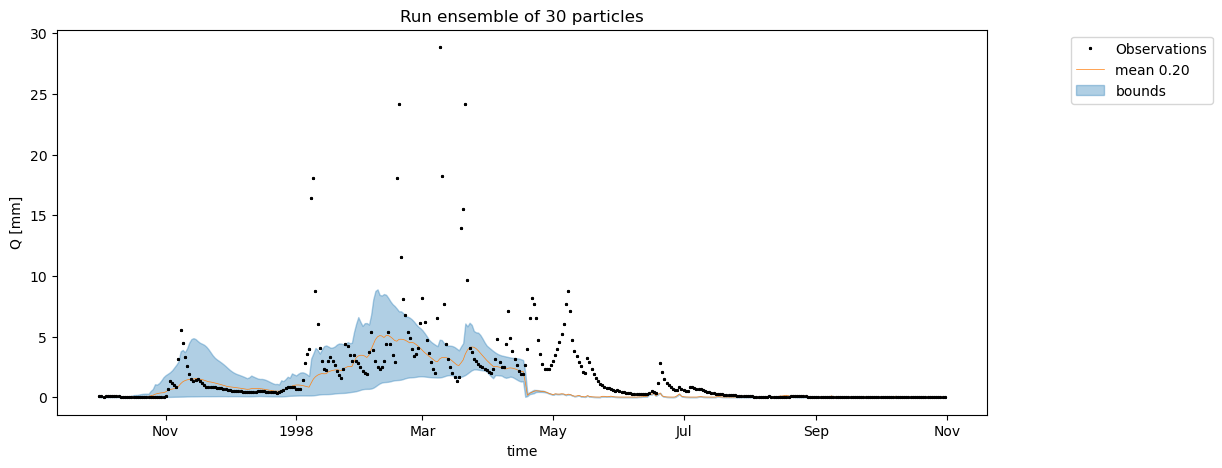

ax.plot(mean_ensemble,color="C1",lw=0.5,label=f"mean {NSE_mean_ens:.2f}",zorder=-1)
ax.fill_between(df_ensemble.index,df_ensemble.T.min(),df_ensemble.T.max(),color="C0", alpha=0.35,zorder=-10,label="bounds")
ax.legend(bbox_to_anchor=(1.25,1))
ax.set_ylabel("Q [mm]")
ax.set_title(f"Run ensemble of {n_particles} particles");
# ax.set_xlim((pd.Timestamp('1997-08-01'),pd.Timestamp('1998-06-01')))
if save:
    fig.savefig(figure_path / f"ensemble_run_for_{n_particles}_particles_{current_time}.png",bbox_inches="tight",dpi=400);

# df_ensemble.plot()
fig, ax = plt.subplots(1,1,figsize=(12,5))
# ax.plot(ds.time.values[:n_days],ds['Q'].values[:n_days],lw=0,marker="*",ms=2.5,zorder=0,label="Observations",color="k")
# ax.plot(df.index, Q_m_in_ref[1:],label="Modelled reference Q");
ds_obs['Q'].sel(time=time).plot(ax=ax,lw=0,marker="*",ms=2.0,zorder=0,label="Observations",color='k')

ax_pr = ax.twinx()
ax_pr.invert_yaxis()
ax_pr.set_ylabel(f"P [mm]")

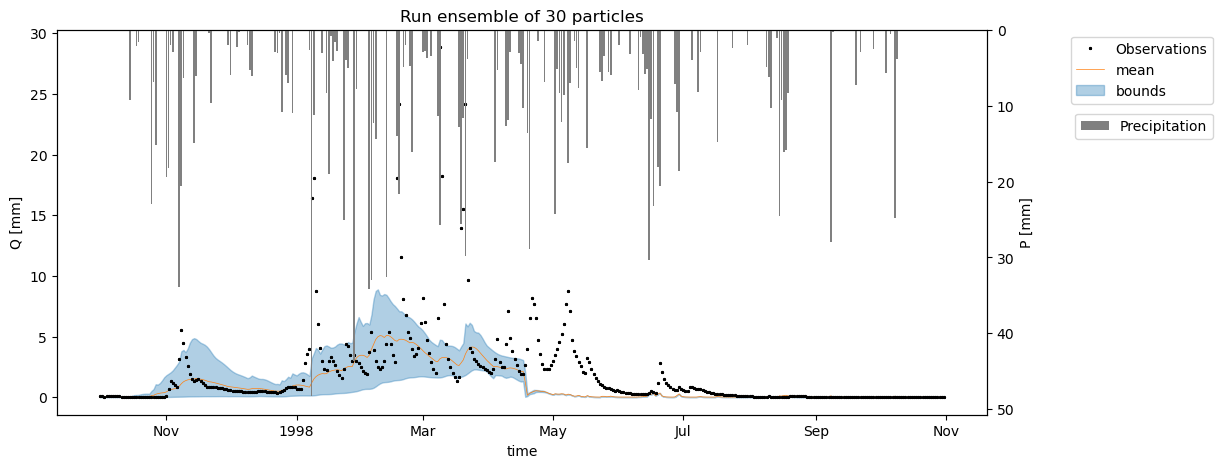

ax_pr.bar(df_ensemble.index,ds['pr'].values[:len(time)],zorder=-15,label="Precipitation",color="grey")
ax_pr.legend(bbox_to_anchor=(1.25,0.8))

ax.plot(mean_ensemble,color="C1",lw=0.5,label=f"mean",zorder=-1)
ax.fill_between(df_ensemble.index,df_ensemble.T.min(),df_ensemble.T.max(),color="C0", alpha=0.35,zorder=-10,label="bounds")
ax.legend(bbox_to_anchor=(1.25,1))
ax.set_ylabel("Q [mm]")
ax.set_title(f"Run ensemble of {n_particles} particles");
if save:
    fig.savefig(figure_path / f"ensemble_run_for_{n_particles}_particles_bounds_P_{current_time}.png",bbox_inches="tight",dpi=400);

n=5
fig, axs = plt.subplots(n,1,figsize=(12,n*2),sharex=True)

ax = axs[0]
ds_obs['Q'].sel(time=time).plot(ax=ax,lw=0,marker="*",ms=2.5,zorder=0,label="Observations",color='k')
ax_pr = ax.twinx()
ax_pr.invert_yaxis()
ax_pr.set_ylabel(f"P [mm]")
ax_pr.bar(df_ensemble.index,ds['pr'].values[:len(time)],zorder=-10,label="Precipitation",color="grey")

ax.plot(mean_ensemble,color="C1",lw=0.5,label=f"mean",zorder=-1)
ax.fill_between(df_ensemble.index,df_ensemble.T.min(),df_ensemble.T.max(),color="C0", alpha=0.5,zorder=-10,label="bounds")
ax.legend(bbox_to_anchor=(1.25,1))
ax.set_ylabel("Q [mm]")

ax.set_title(f"Run ensemble of {n_particles} particles");

for i, S_name in enumerate(S_names):
    for j in range(n_particles):
        ds_combined[stor_names[i]].isel(EnsembleMember=j).plot(ax=axs[i+1],color=f"C{i}",alpha=0.5)
        axs[i+1].set_title(S_name)

# remove all unncecearry xlabels
[ax.set_xlabel(None) for ax in axs[:-1]]
[ax.set_ylabel("S [mm]") for ax in axs[1:]]
if save:
    fig.savefig(figure_path / f"ensemble_run_for__{n_particles}_particles_storages_{current_time}.png",bbox_inches="tight",dpi=400)

fig, axs = plt.subplots(2,4,figsize=(25,10),sharex=True)
axs = axs.flatten()
for j, parameter in enumerate(param_names):
    ax = axs[j]
    for i in range(n_particles):
        ds_combined[parameter].isel(EnsembleMember=i).plot(ax=ax,alpha=0.3)
    ax.set_title(f'parameter={parameter}')# for {n_particles} Ensemble Members')
    ax.set_ylabel(f'[{units[parameter]}]')
if save:
    fig.savefig(figure_path /  f"ensemble_run_for__{n_particles}_particles_parameters_{current_time}.png",bbox_inches="tight",dpi=400)
